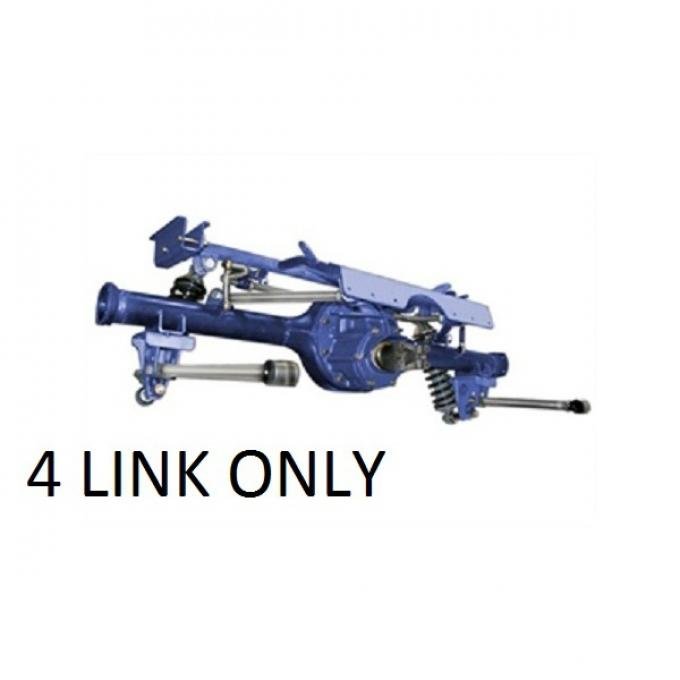

4-Link Suspension Kit Only - Does Not Include A Differential Housing
1" Upper &
Lower Link Bars With Stainless Steel
Adjustors
Synthetic Greasable Urethane Bushings
Triangular Bolt-In Cradle Bracket
All American Coil-Over Shocks
Upper Coil-Over Crossmember
Frame Rail Channel Brackets
Floor Reinforcing Plates
Bolt-On Axle Brackets
Hardware
Kit Included
Fits Non-Mini Tub Vehicles Only
Will Not Fit Convertibles
Detailed Instruction Manual
Limited Lifetime Warranty
Proudly Made In The U.S.A.
TCI's Triangulated 4-Link Rear Suspension allows a lower stance for better handling and greater axle control when higher horsepower engines are installed. The installation mostly requires drilling and bolting in components except for welding the 4 tabs on top of your housing for the top 2 bars and the sway bar brackets if the optional sway bar is purchased. The kit is designed for the stock 8 inch Ford housing but an optional 9 inch housing with brackets installed is available.
NOTE:For 4-link suspension with open-gear rear end, see part # 64-87287. See related items for all possible upgrades for this kit. Gear ratio must be selected even if the 4-link suspension kit without the rear end is being ordered.
This kit will not fit convertibles and vehicles with mini-tubs.
