The classic Ford F-100 and F-150 platform presents some unique challenges when setting out to build an air suspension system that delivers the ride and handling people have come to expect from a Ridetech suspension system.
The old Ford was designed and built for a different era – back when the speed limit was 55 and trucks were meant to work hard. While the original twin I-beam front suspension was certianly built “Ford tough” but it wasn’t exactly built to carve corners.
The front suspension of these trucks are particularly problematic to get lowered… and we like our trucks low. So we set out to design the best handling classic Ford truck suspension – and build it in a package that you can install yourself with hand tools and a little elbow grease.

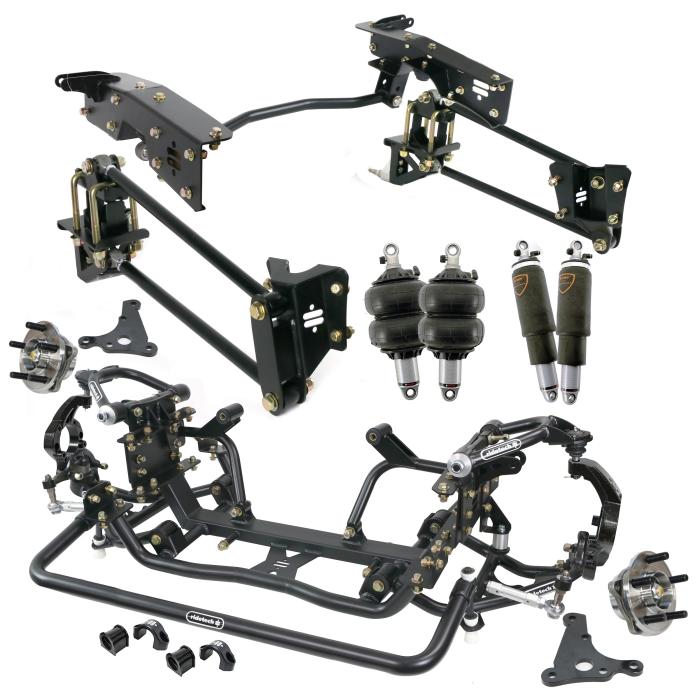

Our complete bolt-in suspension system for the classic Ford trucks removes the entire factory front crossmember in favor of our bolt-on front crossmember…
Yes, we said bolt on… we have built our front suspension for the Ford truck to be bolted in and it is super stout… significantly more rigid and stronger than the original. It aligns with the original rivet holes in the frame, and does require some additional drilling for the many grade 8 fasteners we include in the kit.
This system utilizes the popular (and easy to find) “Fox Mustang” style steering rack. The control arms are set up with the ball-joints installed and include delrin bushings for smooth, squeak free, long-lasting performance. They also provide options for caster so you can set your truck up as aggressive as you want. When compared to other salvage-yard / crown vic options or street rod sourced front suspension systems, the Ridetech system is significantly more structurally sound and provides un-compromised suspension geometry for vastly superior ride and handling and the simplicity of keeping your factory frame.
At the rear of the truck, we utilize a proven 4 link design to provide a low stance and still retain full use of the bed floor and load capacity of the truck. The Ridetech bolt-in c-notch, just like our bolt-in front cross member, is designed to actually improve the strength of the original frame and provides all the mounts for our new control arms and panhard bar.
1965-1979 Front Suspension:
Air suspension system:
This system uses Ridetech Shockwaves to provide air suspension to your classic Ford. The Shockwaves mount just like coil-overs and provide full adjustability over spring rate / load capacity / ride height using air pressure. Along with providing the ability to “air-out” and lower the truck completely when parked for a super aggressive stance, the air suspension also significantly enhanced the ability to cary a wide range of loads while maintaining adequate suspension travel and ride quality.
Air suspension lowers ride height by approximately 5” at ride height with an additional 3” when fully deflated
ShockwavesRideTech’s patented “Shockwave” (integral “shock-within-a-spring” air spring and shock absorber assembly) is a proven winner at shows and in motion. With 24-position rebound adjustment clicks, you fine tune the shocks to your driving preferences and vehicle demands. Advanced Fox Factory Shock Technology hides within the shocks.
The Fox Factory monotube-gas-pressure design features large 1.834″ pistons, heavy duty 5/8″ shafts, and impact-forged aluminum bodies.
Shock calibrations and air spring specs are based on more than 20 years of extensive air ride development on the street, highways and race tracks. It all adds up to predictable handling that is comparable to Coil-Overs but with instant ride height adjustment. You get the best of both worlds.
Stock Ride Height Before InstallFender Lip Height @ Wheel CenterF- 30 ¾” R- 32 3/8”
Aired OutFender Lip Height @ Wheel CenterF- 22 ¾” R- 24 ¼”
Ride HeightFender Lip Height @ Wheel CenterF- 26 ¼” R- 26 ¾”
Fully RaisedFender Lip Height @ Wheel CenterF- 27 ½” R- 28 ½”
Ridetech manufactures exciting suspension systems that improve the handling and ride quality of your muscle car, truck, Corvette or hot rod. From restorations and show cars, to high-speed autocross and track day cars, Ridetech offers a wide range of premium products including air suspension systems (air ride), coil-overs, shock absorbers, coil and leaf springs, tubular control arms, roll bars, sway bars and much more.
| Make | Model | Years |
| Ford | F-100 | 1965 - 1972 |
| Part Type | Air Suspension System |
| Pricing Group | Air Suspension System |
| Prop 65 Chemicals | chromium,nickel,nickel_compounds |
| Proposition 65 Warning | Y |
| Warranty Time | 1 Months |
