1969-1970 Ford Mustang LED Digital Gauge Panel - DP7003

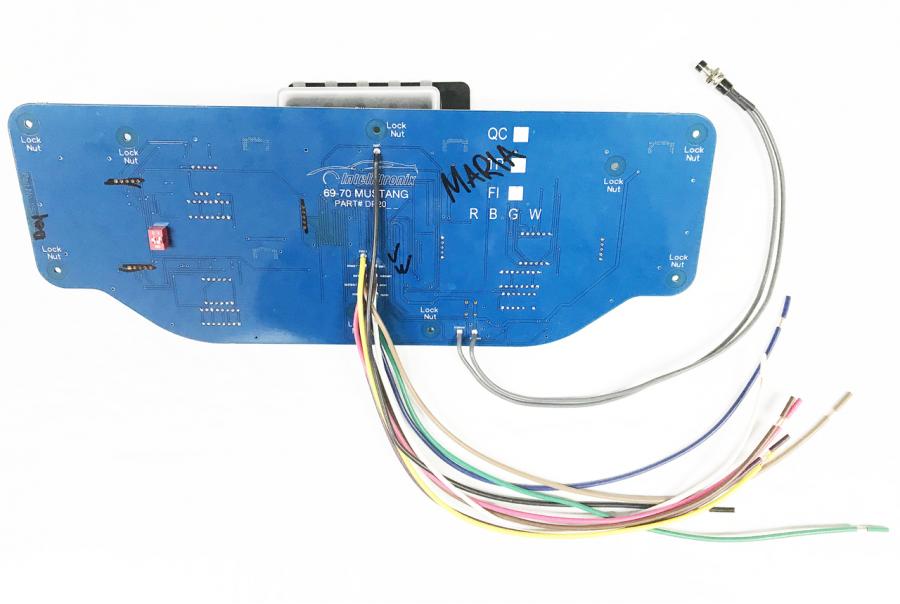

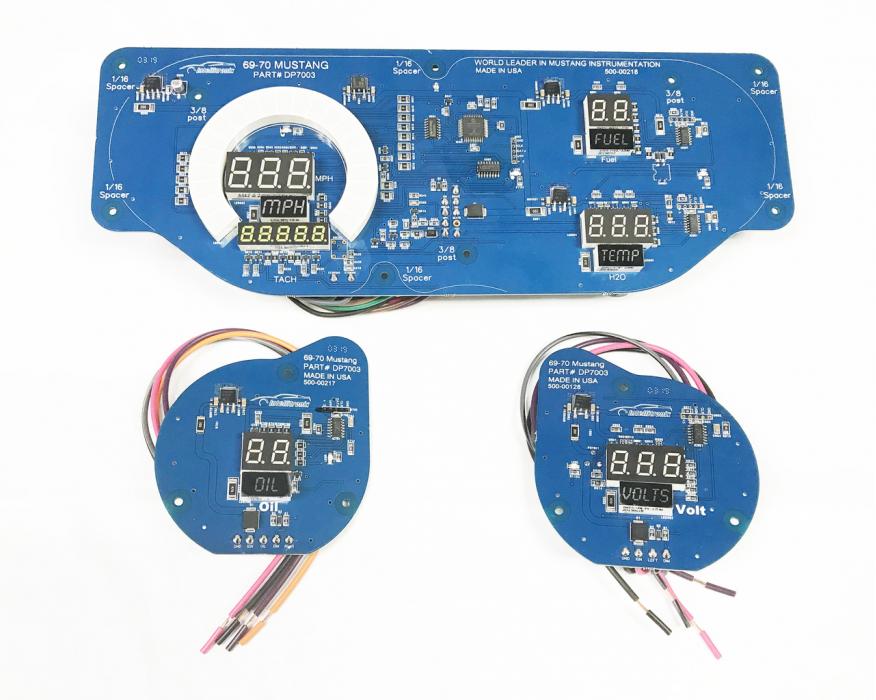

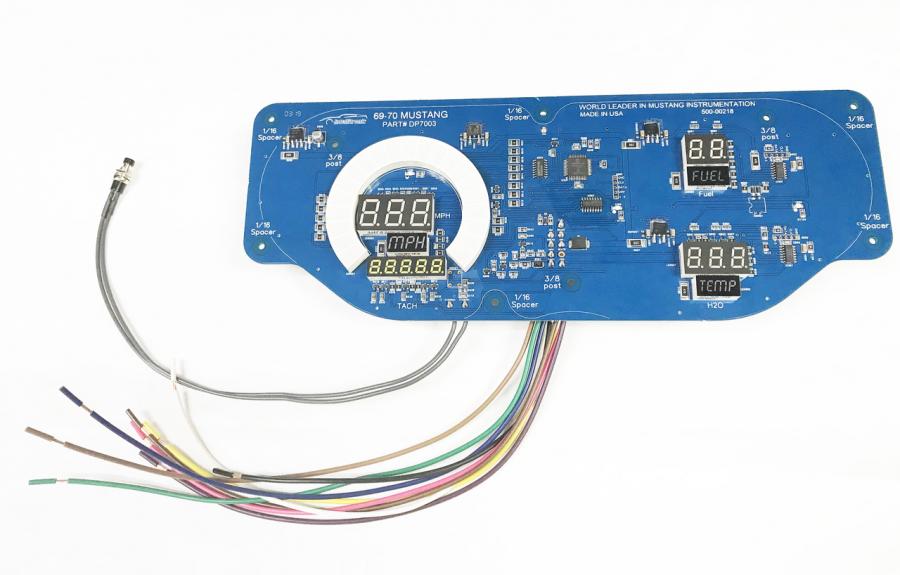

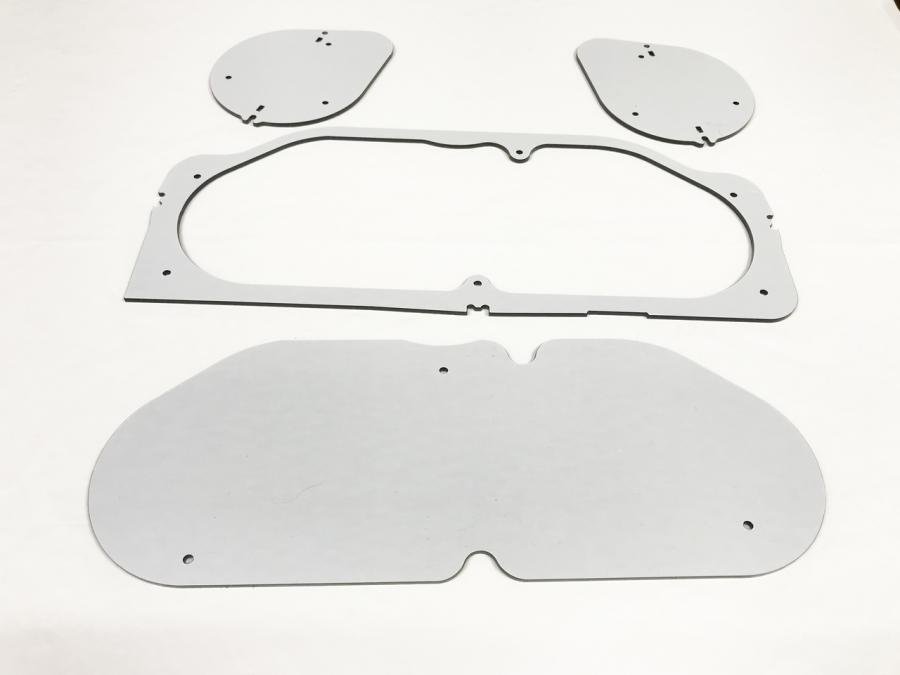

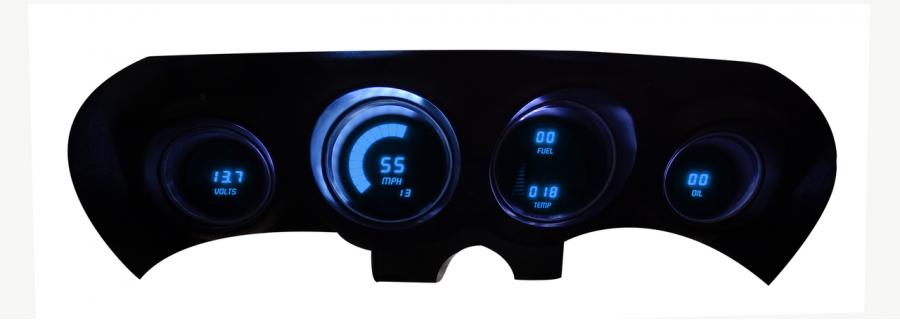

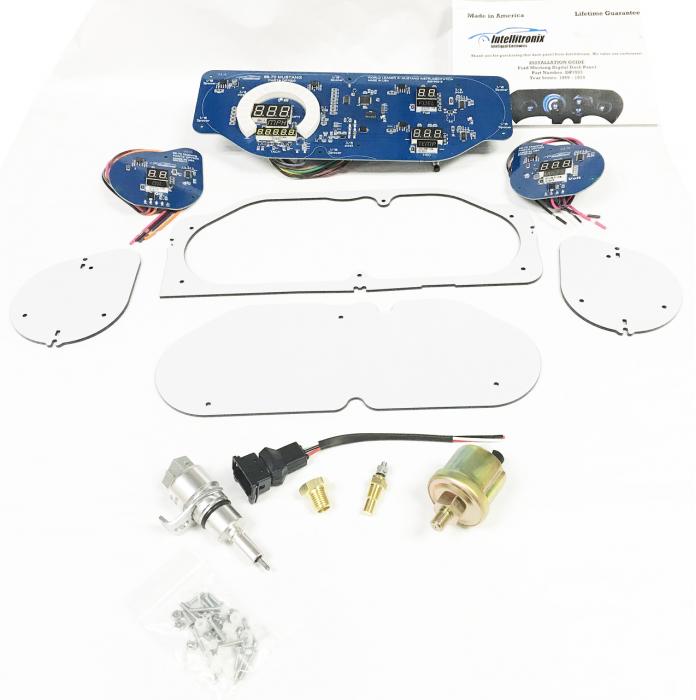

Calling all 1969-1970 Ford Mustang owners, check out the new 1969-1970 Ford Mustang LED Digital Direct Fit Replacement Gauge Panel from Intellitronix. The 69-70 Ford Mustang LED Digital Gauge Panel features a Speedometer and Tachometer combination along with 4 other gauges. The replacement panel comes complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with senders and sensors for vehicles without electronic transmission or cruise control, and instructions for installation.
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use Intellitronix S9024 universal speedometer sending unit included, if your vehicle is not equipped with a functional cruise control.
Tachometer displays 0-9900 RPM in 100 RPM increments.
Water Temperature reads 18-255 °F range with sending unit S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead, upon request.
Oil Pressure displays with 0-99 PSI range. Oil pressure sender included.
Voltmeter displays 7.0-18.5 volt range and no sending unit is required.
Fuel Level displays 0-99% range in 1% increments and works with existing Ford fuel level sending unit.
The 1969-1970 Ford Mustang LED Digital Direct Fit Replacement Gauge Panel features turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
Know Before You Buy!
If you have a LS engine, then please be aware that you may need adapters from metric to nonmetric for Intellitronix sending units. If not included in your engine kit, you may have to obtain them elsewhere separately. Also, your LS engine has a Tachometer output equivalent to a 4-cylinder instead of 8-cylinder. Please include a note to us letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, so you can set it yourself if it comes set differently.
BEZEL NOT INCLUDED

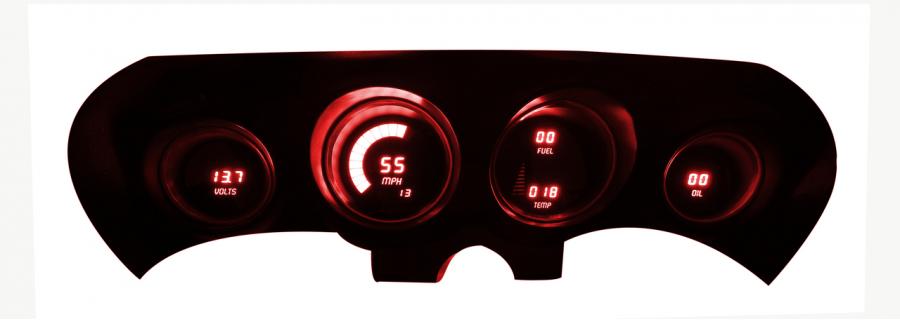

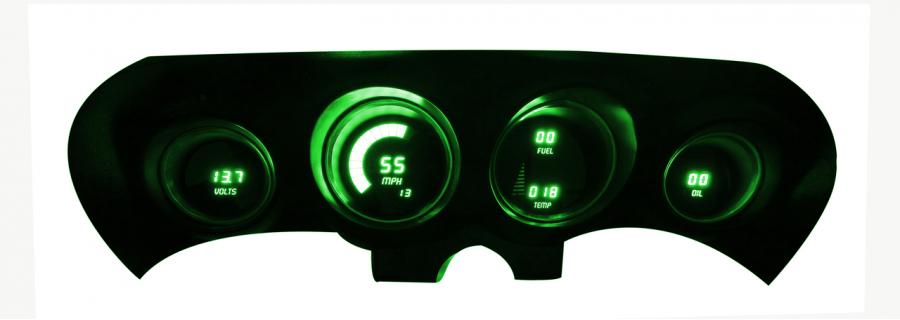

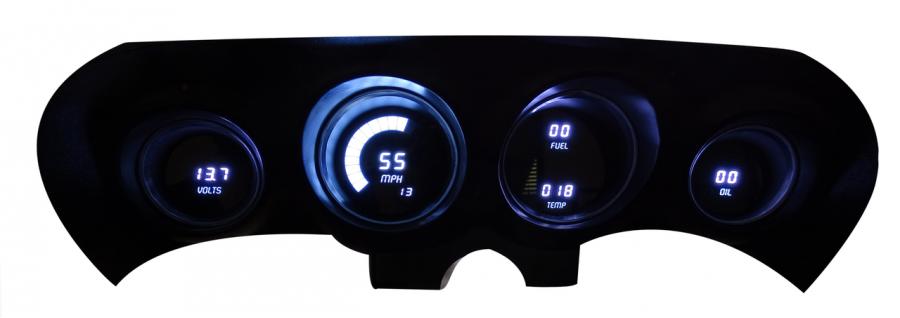

AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH

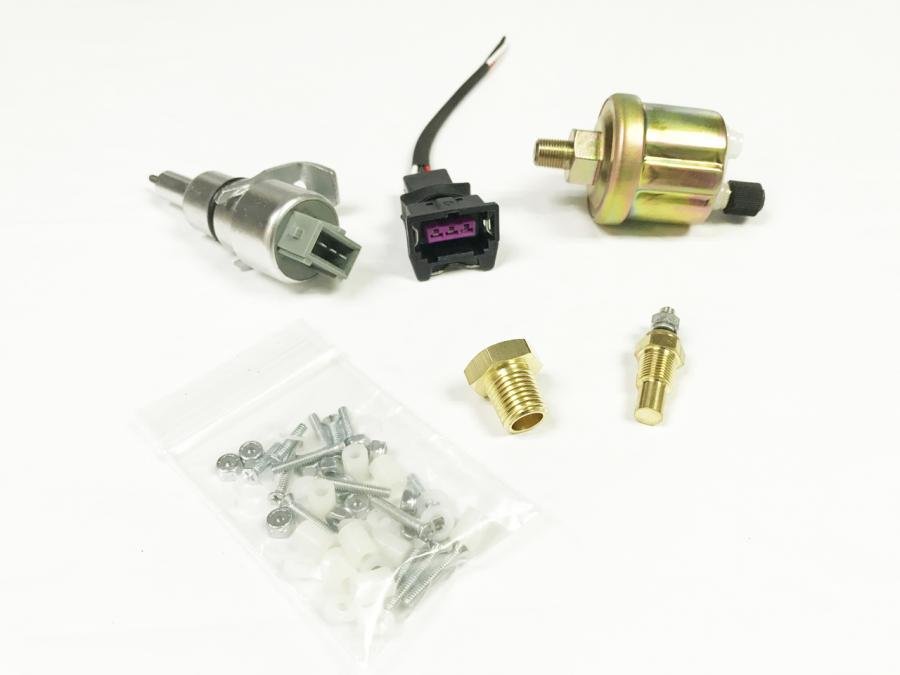

ACCESSORIES: All required sending and sensor units are included.
Intellitronix Corp is an industry leader, manufacturing LED lighting and microprocessor-controlled LED products, which are first-class, energy-saving devices for the automotive electronic, marine, and recreational vehicle markets. Intellitronix has a wide range of best-selling automotive electronics, accessories, and digital gauges sold and distributed internationally. Intellitronix’s products are manufactured in a state-of-the-art facility in Eastlake, Ohio using top-quality materials and specialized equipment.
LEDs have become the powerhouse of the lighting world surpassing traditional light bulbs, television and computer screen illumination, being seen in trendsetting applications like headlights and taillights in cars, trucks, and daytime running and off-road lighting. Not only does Intellitronix understands the power and importance of utilizing LEDs but has the genius and expertise to put this knowledge into practice.
In addition, Intellitronix products have dominated areas of the marine industry with the creation of a unique, more efficient GPS controlled marine speedometer, and its Prometheus Ignition System to guard against ignition failures. The RV market is benefiting from Intellitronix new 4-IN-1 Energy Management Multifunctional System (EMMS) for recreational vehicles. The 4-in-1 unit incorporates energy management and load shedding, a breaker panel, automatic transfer switch, automatic generator starter plus display unit, Bluetooth, WiFi and multiplexing capabilities.
| Make | Model | Years |
| Ford | Mustang | 1969 - 1970 |
| Color | Red, Blue, Green, White |
| Speedometer & Temperature | MPH & Fahrenheit, KMH & Celsius |
| Warranty | LIFETIME FACTORY WARRANTY |
