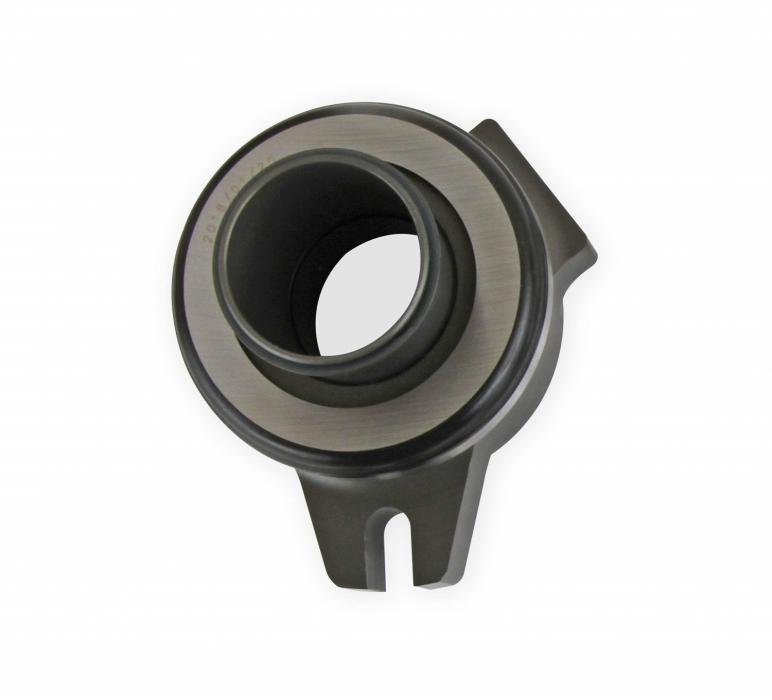

Hays Hydraulic Release Bearing Kit for GM Muncie, Saginaw, T10, and T-5 Transmissions 82-100

Hays Hydraulic Release Bearing Kit for GM Muncie, Saginaw, T10, and T-5 Transmissions 82-100
Hays Hydraulic Release Bearing Kit for GM Muncie, Saginaw, T10, and T-5 Transmissions 82-100Hays Hydraulic Release Bearing Kit for GM Muncie, Saginaw, T10, and T-5 Transmissions 82-100Hays Hydraulic Release Bearing Kit for GM Muncie, Saginaw, T10, and T-5 Transmissions 82-100Hays Hydraulic Release Bearing Kit for GM Muncie, Saginaw, T10, and T-5 Transmissions 82-100Hays Hydraulic Release Bearing Kit for GM Muncie, Saginaw, T10, and T-5 Transmissions 82-100
$420.99 ea
NEWARRIVING SOONEstimated Ship Date 12/11/2024 (If Ordered Today)41 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/24/2024
Model: 4006865
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Hays offers upgraded release bearing kits for your favorite factory hydraulic equipped car along with applications to convert from a mechanical-style to hydraulic-style release bearing. Typically, this hydraulic conversion offers easier pedal effort over a mechanical release bearing. Our bearing kits offer full adjustability, providing an easy setup with most single or dual disc clutches along with reduced pedal effort. Hays release bearings are a floating design and feature large O-rings and PTFE backup rings in the grooves to help eliminate leakage and offer a long service life. A snap ring on the front of the piston prevents over travel and keeps from pushing the bearing off the sleeve. The sealed bearing snaps in place and is easily serviceable. Our release bearing kits include bearing assembly, bearing retainer (where required), mounting hardware, adjustment shims, and -3AN bleed line.
Features:
  • Offers improved clutch engagement and disengagement
  • Adjustable design provides increased travel over stock release bearing
  • Designed to fit various manual transmissions
  • Retrofit kits offer an simple way to add easy effort hydraulic clutch actuation
  • Works with single or dual disc clutches
  • Floating design bearing with large O-rings and PTFE backup rings to eliminated fluid leakage

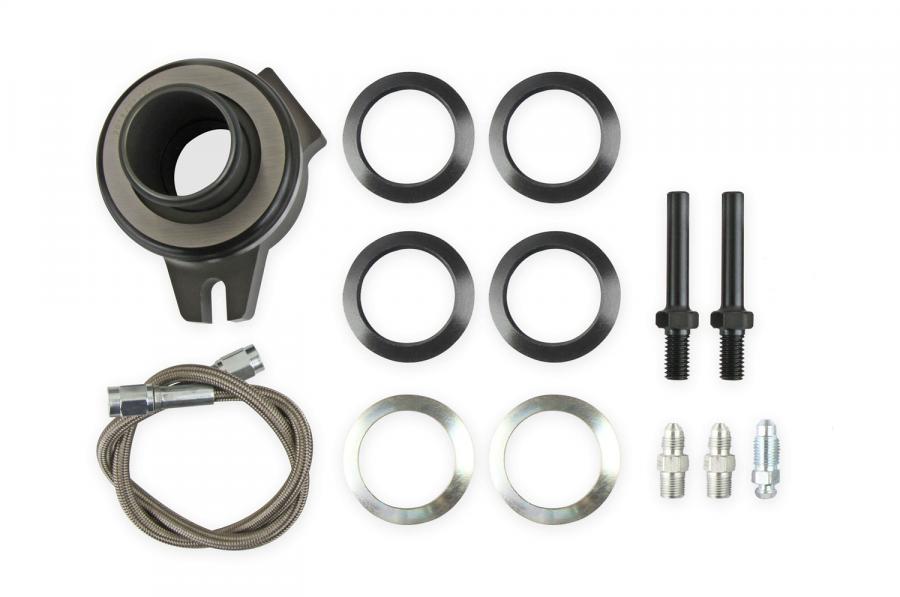

  • Kits include bearing assembly, bearing retainer (where required), mounting hardware, adjustment shims, and -3AN bleed line
The included shims are the following thicknesses: Silver = .065" ; Black = .040". Requires a .750 inch bore master cylinder with a minimum of 1.1 inch stroke
Installation Notes:
The included shims are the following thicknesses: Silver = .065" ; Black = .040". Requires a .750 inch bore master cylinder with a minimum of 1.1 inch stroke

Downloads:

Download Name File Size
199r11651.pdf610.65KB

Specifications:

Amount of Travel 0.700
Bearing Retainer Included No
Bearing Style Hydraulic

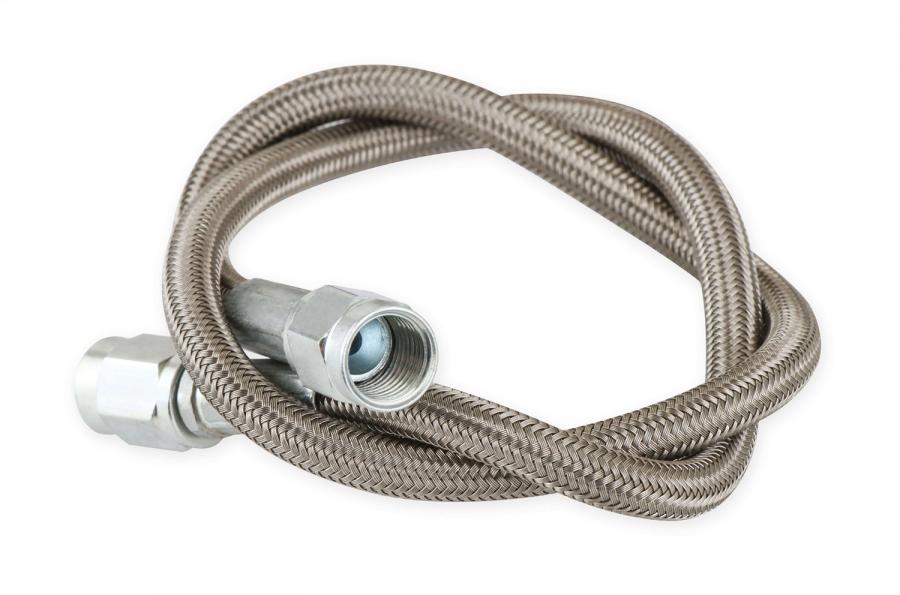

Bleed Line Included Yes
Bleed Line Length (inches) 18
Compressed Length 1.75 inches
Emission Code 5
Feed Line Included No
Fitting Size 3AN
Fittings Included Yes
Part Type Clutch Release Bearing
Product Type Hydraulic Release Bearing Kit
Proposition 65 www.P65Warnings.ca.gov
Shims Included Yes
Transmission Collar Size 1.375 inches
Warranty Limited 90 Day Warranty
