Detroit Speed Speed Kit 3 Rear Suspension Kit 79-93 Mustang 79-86 Capri Non-adjustable Shock 041647

What sets this Detroit Speed rear suspension system apart from the others is all the considerations that went into the design. Not only does this kit fix common issues seen in the Fox Body platform, it improves suspension geometry, ride quality and driving characteristics without sacrificing appearance.

With the Mini-Tub Suspension Kit, you can expect improved traction, stability, and lower driveline vibrations, giving you more confidence for spirited driving. This kit was designed for daily driving, dragstrip, autocross and track use.

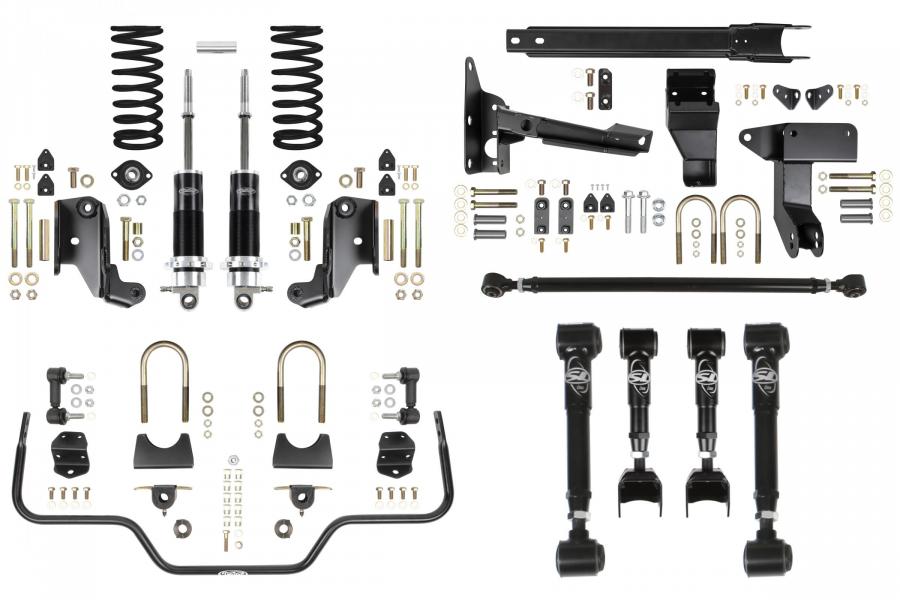

This kit combines our Rear Coilover Conversion, Swivel-Link, Rear Sway Bar, and Adjustable Track Bar Kits.

The Detroit Speed Coilover Conversion Kit allows the latest in coilover spring/shock technology to be bolted on to any Fox Body Mustang, bringing your classic's handling and ride into the 21st Century with our 'Detroit-Tuned' valving.

The springs are removed from the lower control arms and shocks mounts are relocated into the frame rail for maximum strength and wheel/tire clearance. Once coilover conversion is complete, Detroit Speed Mini-Tubs may be installed in the car at any time.

Your factory exhaust will need to be modified before it can go back into the vehicle to fit around the track bar kit. Modify your exhaust as needed or have a local exhaust shop re-build the rear exhaust system as desired.

Features and Benefits:

• Bolt-on coilover conversion relocates the springs/shocks to the frame rail for maximum strength and wheel/tire clearance
• Detroit-Tuned coilover springs/shocks optimized for modern ride quality, handling and ride-height adjusent
• Provides clearance for custom exhaust up to 3 inch (depending on tire and mini-tub width, fuel tank modification may be required)
• Laser-cut brackets compatible with original frames and axles

The Detroit Speed Swivel-Link Rear Suspension Kit eliminates bind and allow the suspension to fully articulate without the use of noisy spherical rod ends. Swivel-Link rear links allow for easy pinion angle adjusent without unbolting from the car for improved traction, lower driveline vibrations.

The Fox Body Mustang Swivel-Link Kit comes with new hardware and directly bolts on to replace the factory links. A coilover conversion kit is required before installing Swivel-Link kit, as there is no spring perch on the links like on the factory arm.

Features and Benefits:

• Bolt-on Detroit Speed Swivel-Links are stronger than factory control arms and eliminate bind, allowing the rear suspension to fully articulate
• Easily adjust wheelbase and pinion angle without unbolting Swivel-Links from the car for improved traction and lower driveline vibrations

The Detroit Speed Fox Body Mustang Sway Bar offers multiple advantages over the non-effective stock rear bar. Detroit Speed sway bars attach to the rear end housing and the frame rail, where the stock bar only connects to the lower suspension links.

By using the chassis to stabilize the rear axle as opposed to the opposing link, the deflection of the vehicle under heavy cornering is minimized. Detroit Speed sway bars mount with a low-friction ball-style end-link, allowing free articulation of the bar, eliminating binding through the range of rear suspension travel.

Features and Benefits:

• Bolt-on tubular sway bar mounts directly to the chassis and axle - more effective than factory bar
• 3/4 inch sway bar diameter

The Detroit Speed Fox Body Mustang Adjustable Track Bar Kit adds a critical link to keep the rear axle stable during hard cornering. The factory 4-link is completely ineffective at locating the axle side-to-side as the suspension arms travel vertically.

The addition of a Detroit Speed Track Bar to the Fox Body Mustang will prevent the axle from wandering unpredictably. The track bar connects to the rear axle to the chassis of the vehicle, which helps keep the axle centered under the chassis during suspension travel.

This gives the driver better grip and acceleration off the line and more confidence in the corners. The track bar brackets bolt-on through holes added into the frame rail and U-Bolts to the factory 8.8 rear axle.

Features and Benefits:

• Bolt-on track bar adds a critical link to keep the rear axle centered and stable during hard cornering - absent from the stock Fox Body Mustang
• Provides clearance for custom exhaust up to 3 inch (depending on tire and mini-tub width, fuel tank modification may be required)
• Improves vehicle's handling by locating the rear roll center 1-1/2 inch below axle centerline
• Laser-cut brackets compatible with original frames and axles

Detroit Speed puts a significant amount of effort into developing long-lasting, dependable products that are formulated to exceed late-model performance expectations. Our systems are designed by exceptionally qualified engineers and built by fabricators dedicated to making the best systems they possibly can. Our parts are made using state-of-the-art manufacturing technologies–CNC machining, forging, hydroforming, and more–to bring your classic muscle car to the 21st century.

Months of testing, revising, and polishing stand behind every product we make available to the public, and our test cars prove the point. Each of our development mules receive thousands of hard miles attending car shows, completing road trips, crushing autocross paddocks, and storming track days in the process. The pursuit of perfection has always been our primary goal, and it always will be. Because of this, we can confidently say our systems are the best, most comprehensive solutions to any and all your muscle car problems.
