Important:
Due to non-factory engine and radiator swaps please check the measurements we have provided to verify fit before ordering. You may also verify the shroud ID on the original shroud, when possible.

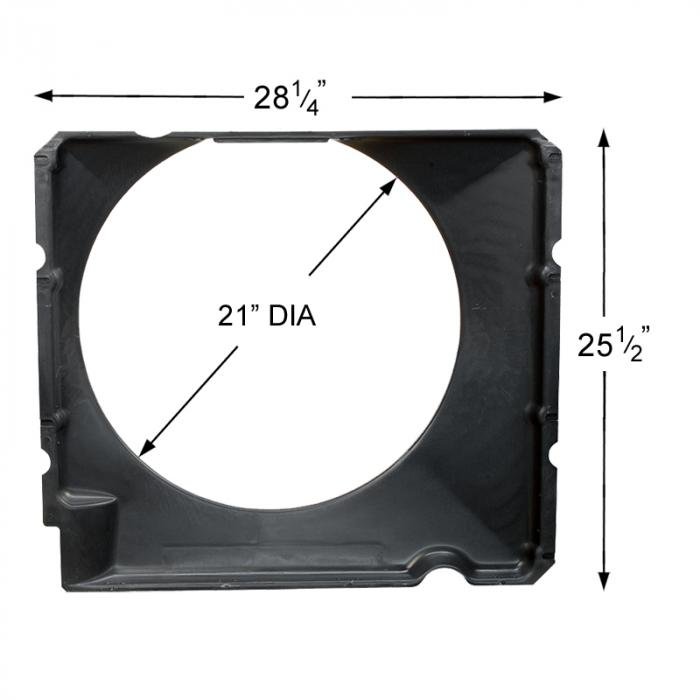

Measurements:
Overall Height: 25"
Overall Width: 28"

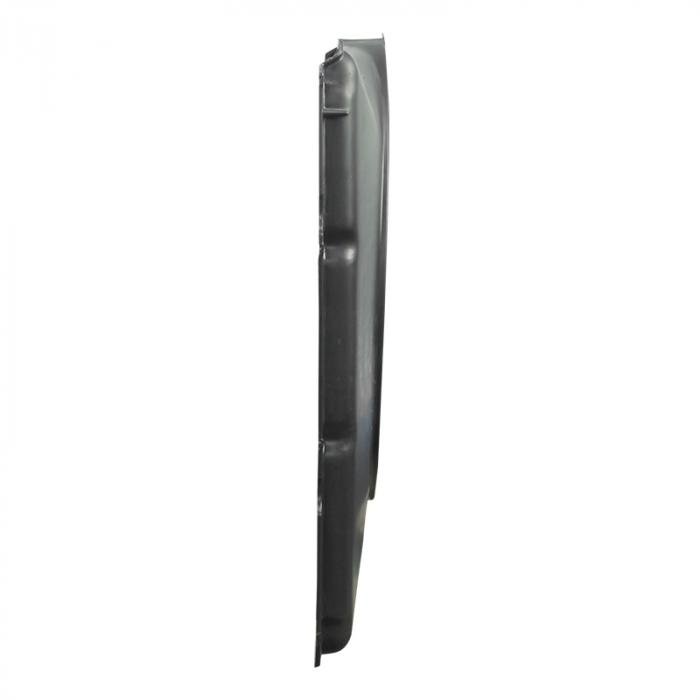

Overall Thickness: 2¾"
Driver Side Outer Vertical Holes C-C: 21⅝"
Driver Side Inner Vertical Holes C-C: 7½"
Passenger Side Outer Vertical Holes C-C: 14"
Passenger Side Lower Vertical Holes C-C: 7½"
Horizontal Mounting Holes C-C: 27¼"
Fan Opening: 20⅝"
Features:

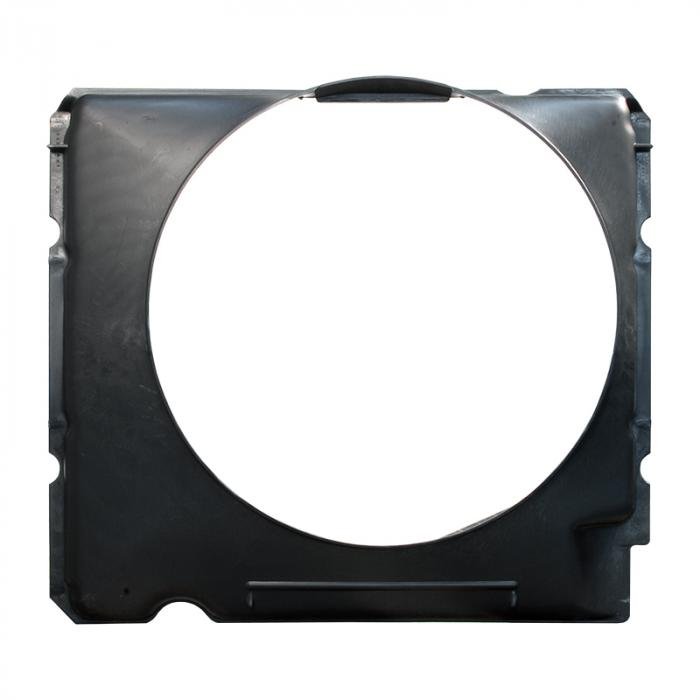

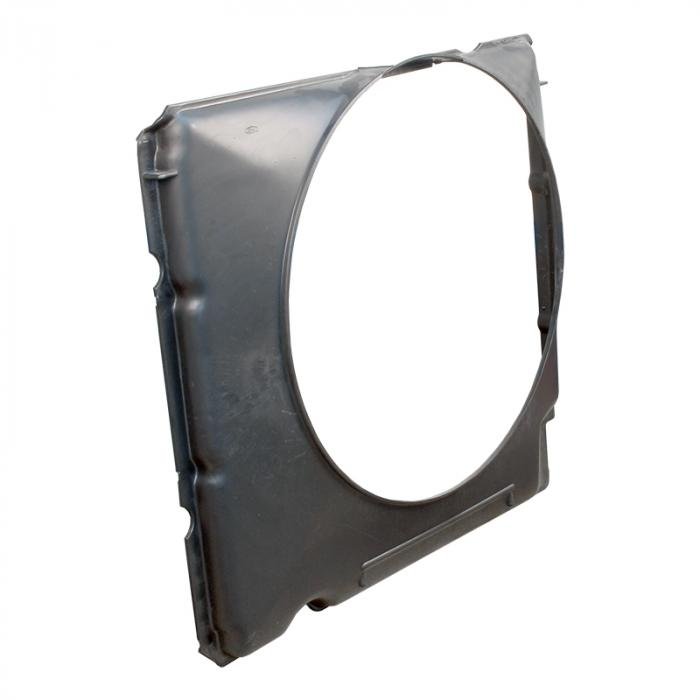

• This shroud ID # D4TA-CA, D4TA-CB
• Made from Original Ford Tooling
• Made in the USA by Dennis Carpenter
Without a fan shroud, the fan pulls air from around the radiator instead of through it!
Note: Requires Oversize Shipping
Notes Key - S/C= Standard Cool, X/C= Extra Cool, S/X/C= Super Extra Cool, A/C= Air Conditioner
| Make | Model | Years | Fitment Notes |
| Ford | F-100 | 1973 - 1979 | 460 w- S/C, X/C, S/X/C, A/C |
| Ford | F-350 | 1973 - 1979 | 460 w- S/C, X/C, S/X/C, A/C |
