Wilwood Brakes 2005-2014 Ford Mustang Combination Parking Brake Caliper Rear Brake Kit 140-10159

Wilwood Brakes 2005-2014 Ford Mustang Combination Parking Brake Caliper Rear Brake Kit 140-10159
Wilwood Brakes 2005-2014 Ford Mustang Combination Parking Brake Caliper Rear Brake Kit 140-10159Wilwood Brakes 2005-2014 Ford Mustang Combination Parking Brake Caliper Rear Brake Kit 140-10159Wilwood Brakes 2005-2014 Ford Mustang Combination Parking Brake Caliper Rear Brake Kit 140-10159Wilwood Brakes 2005-2014 Ford Mustang Combination Parking Brake Caliper Rear Brake Kit 140-10159Wilwood Brakes 2005-2014 Ford Mustang Combination Parking Brake Caliper Rear Brake Kit 140-10159Wilwood Brakes 2005-2014 Ford Mustang Combination Parking Brake Caliper Rear Brake Kit 140-10159
$2,690.99 ea
NEWARRIVING SOONEstimated Ship Date 11/28/2024 (If Ordered Today)4 Available from WILWOOD ENGINEERING as of 11/14/2024
Model: 3920684
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

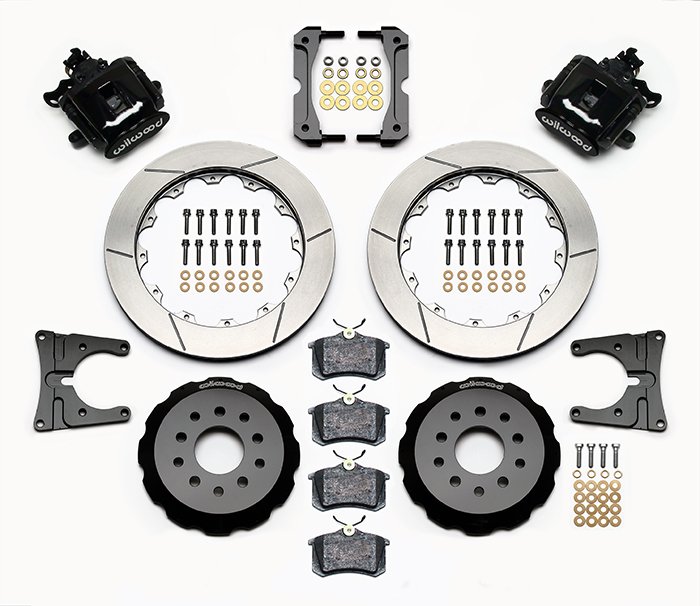

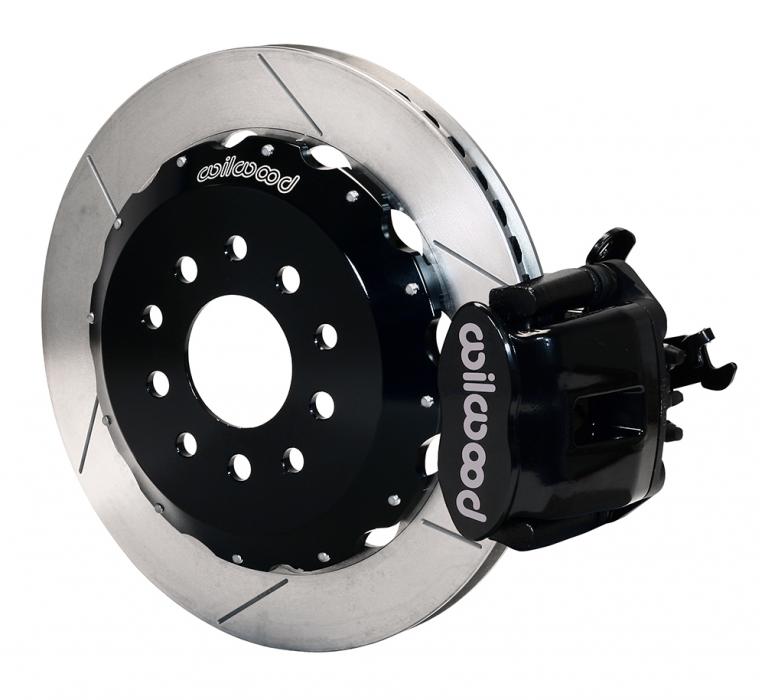

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.

Fitment Notes

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds587.pdf360.38KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Ford Mustang Base 2014 KIT,REAR,CPB,MUSTANG 05-10,1.00 OFFSET 12.90 ROTOR; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT
Ford Mustang Base 2005 - 2013 KIT,REAR,CPB,MUSTANG 05-10,1.00 OFFSET 12.90 ROTOR; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang Boss 302 2012 - 2013 KIT,REAR,CPB,MUSTANG 05-10,1.00 OFFSET 12.90 ROTOR; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang Bullitt 2008 KIT,REAR,CPB,MUSTANG 05-10,1.00 OFFSET 12.90 ROTOR; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang GT 2005 - 2013 KIT,REAR,CPB,MUSTANG 05-10,1.00 OFFSET 12.90 ROTOR; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang GT 2011 - 2012 KIT,REAR,CPB,MUSTANG 05-10,1.00 OFFSET 12.90 ROTOR; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Except Performance Brakes
With Performance Brakes
Ford Mustang GT 2014 KIT,REAR,CPB,MUSTANG 05-10,1.00 OFFSET 12.90 ROTOR; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT
with Brembo Brakes
Except with Brembo Brakes
Ford Mustang Shelby GT500 2013 - 2014 KIT,REAR,CPB,MUSTANG 05-10,1.00 OFFSET 12.90 ROTOR; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT
Ford Mustang Shelby GT500 2007 - 2012 KIT,REAR,CPB,MUSTANG 05-10,1.00 OFFSET 12.90 ROTOR; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang Shelby 2014 KIT,REAR,CPB,MUSTANG 05-10,1.00 OFFSET 12.90 ROTOR; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT
Ford Mustang 2007 - 2009 KIT,REAR,CPB,MUSTANG 05-10,1.00 OFFSET 12.90 ROTOR; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Except Shelby GT500 Models
Ford Mustang 2008 KIT,REAR,CPB,MUSTANG 05-10,1.00 OFFSET 12.90 ROTOR; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Except Shelby GT500 and Bullit Models

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Summary
Axle Offset 2.66
Caliper Type 1 - Black Powder Coat
Min Wheel Diameter Req'd* 17
Mount Type Radial
Rear End Axle Mustang 05-up
Rotor Diameter 12.88
Kit Components & Specs / Rotors
Bedded No
Design Type GT
Dynamically Balanced Yes
Left Hand - Part No 160-13357
Material Spec-37 Iron
Outside Diameter (in) 12.88
Right Hand - Part No 160-13356
Style GT Slotted
Surface Finish Plain
Type GT 48 Curved Vane
Vane Count 48 CV
Width (in) 1.00
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 X 4.50
Finish Color Black E-Coat
Hat - Part No 170-11328
Hat Offset Dimension (in) 1.000
Material Aluminum
Stud Diameter - BC 1 0.520
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Big Brake Hat - Short Offset
Kit Components & Specs / Calipers
Brake Pad Area (In²) 4
Brake Pad Plate D340
Brake Pad Volume (In³) 1.5
Finish Color Black Powder Coat
Left Hand - Part No 120-10110-BK
Mount Type Radial
Pad Compound BP-10
Piston 1 Bore (in) 1.62
Piston Area (In²) 2.06
Piston Count 1
Piston Type Steel
Right Hand - Part No 120-10111-BK
Type Combination Parking Brake
Parts & Accessories / Brake Lines
Front Line Kit 220-10417
Parking Brake Cable 330-10791
Parts & Accessories / Caliper Parts
O-ring Kit Call
Replacement Piston 1 Call
